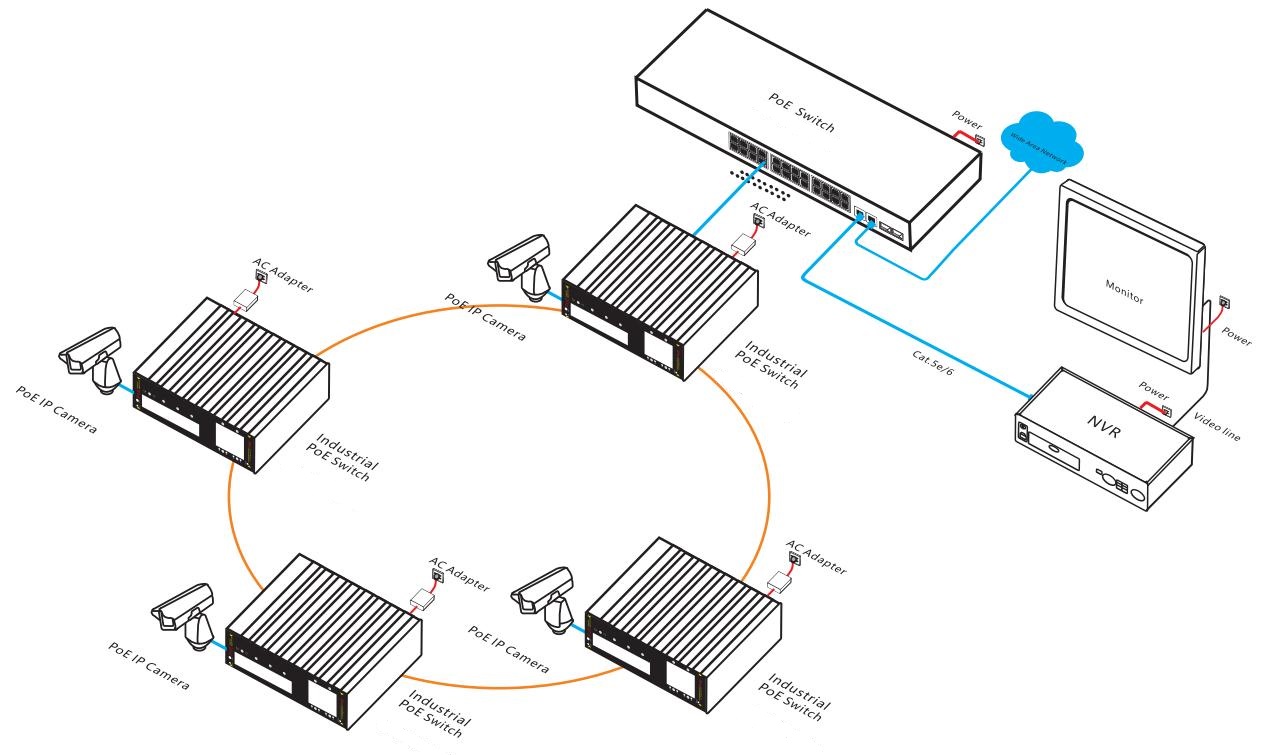

Model |

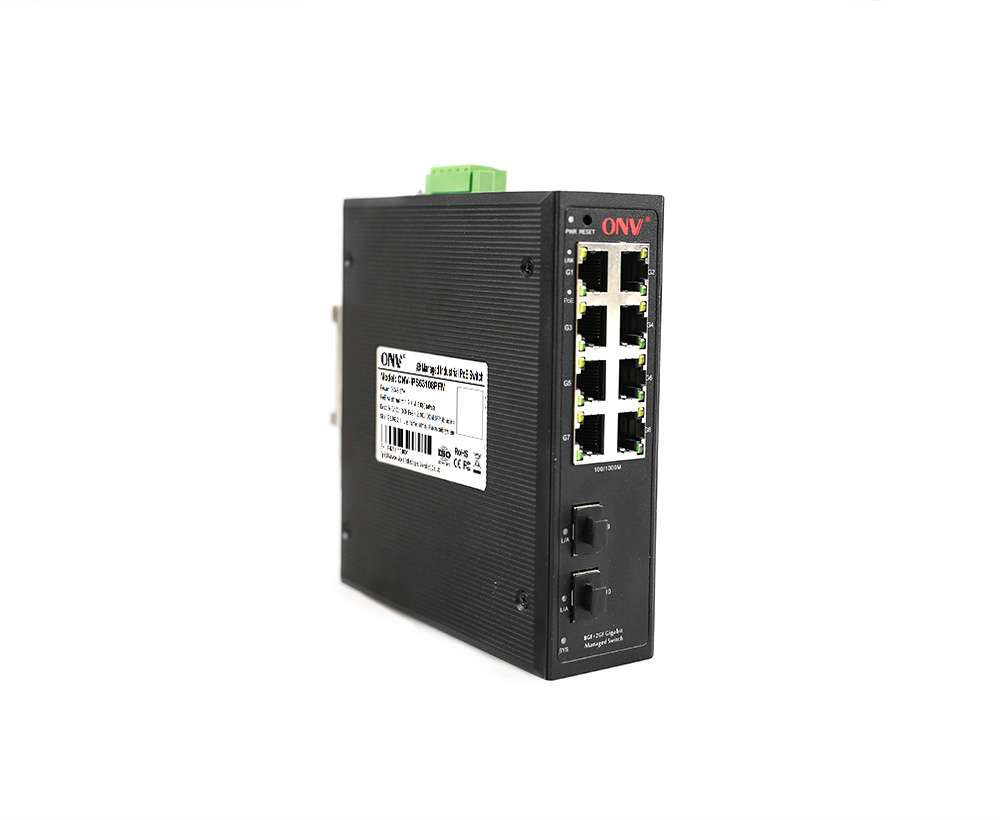

ONV-IPS3010PFM |
|
Interface Characteristics |
|
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Fiber Port |
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
4.1Mb |
|
Jumbo Frame |
10KB |
|
CPU(Hz) |
500M |
|
DRAM |
1Gb |
|
Flash |
128Mb |
|
LED Indicator |
Network: Link G1-G8 (Yellow), Fiber port: L/A G9-G10 (Green) Power: PWR (Green), System: SYS (Green), PoE: PoE G1-G8 (Green) |
|
Reset Switch |
Yes. Press and hold the reset switch for 10 seconds and release it to restore factory settings |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1- 8 |
|
PoE Management |
Port PoE output on/off, Port PoE working status display |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<8W, Full load af<120W, at<240W |
|
Input Voltage/ Interface |
DC44-56V, 5P industrial phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.8kg |
|
Installation |
Desktop, DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the incoming and outgoing ports to mini granularity of 16Kbps and max of 1Gbps |
|
Layer 3 Features |
IPV4 Static routing/ default routing max 128 entries L2+ network management, ARP protocol max 1024 entries |
|
VLAN |
Port configuration of Access, Trunk, Hybrid VLAN based on the protocol, 4K VLAN based on port, IEEE802.1q |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2, Max 1024 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Flow-based Packet Filtering 8*Output queues of each port, 802.1p/ DSCP priority mapping |
|
ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum User hierarchical management and password protection SSH 2.0, SSL, Port isolation, IP-MAC-VLAN-Port binding Mac black holes, IP source protection , ARP message speed limit ARP inspection, Anti-DoS attack, AAA & RADIUS, MAC learning limit |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
ONV-NMS platform cluster management (LLDP+SNMP) Download & Management on FTP, TFTP, Xmodem, SFTP One-key recovery, Cable Diagnose, LLDP, SNMP V1/V2/V3 NTP, System work log, Ping Test, CPU instant utilization status view Web Management (HTTPS), Console/ AUX Modem/ Telnet/ SSH2.0 CLI |
|
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
|
Model |

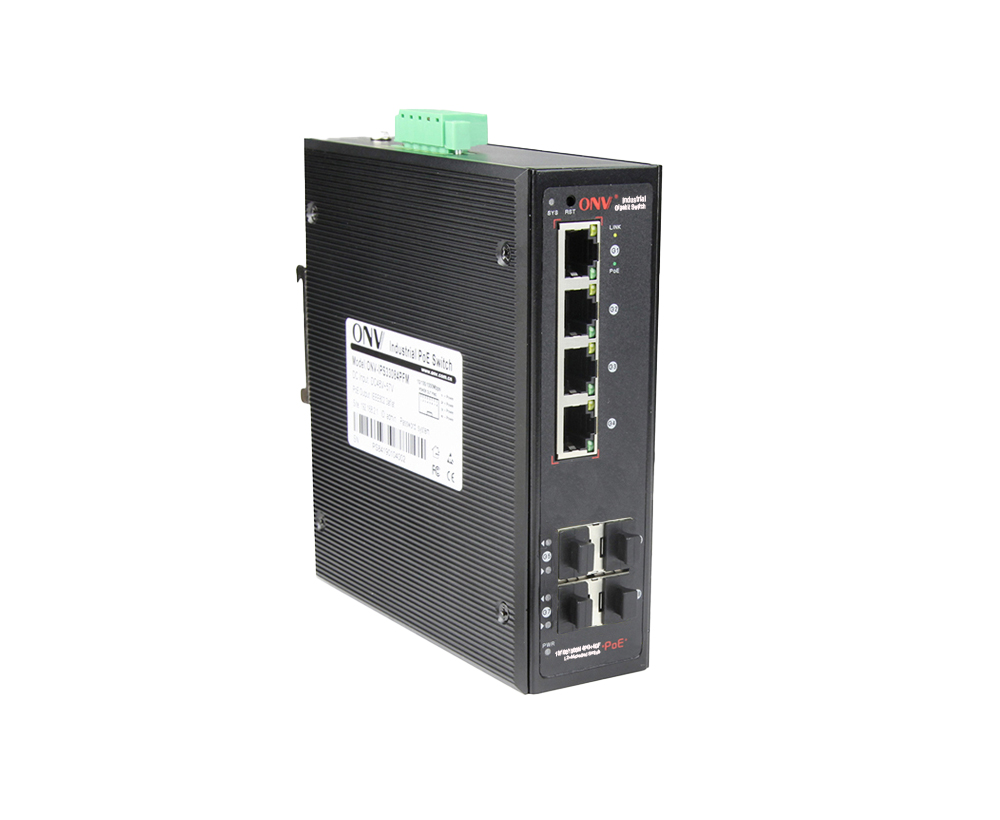

ONV-IPS3006PFM |
|
Interface Characteristics |
|
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 4*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
|
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Fiber Port |
Gigabit optical fiber interface, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
8K |
|
Buffer Memory |
4.1Mb |
|
Jumbo Frame |
10KB |
|
CPU(Hz) |
500M |
|
DRAM |
1Gb |
|
Flash |
128Mb |
|
LED Indicator |
Network: Link G1-G4 (Yellow), Fiber port: L/A G5-G6 (Green) Power: PWR (Green), System: SYS (Green), PoE: PoE G1-G4 (Green) |
|
Reset Switch |
Yes. Press and hold the reset switch for 10 seconds and release it to restore factory settings |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1- 4 |
|
PoE Management |
Port PoE output on/off, Port PoE working status display |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<6W, Full load af<60W, at<120W |
|
Input Voltage/ Interface |
DC44-56V, 5P industrial phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.8kg |
|
Installation |
Desktop, DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the incoming and outgoing ports to mini granularity of 16Kbps and max of 1Gbps |
|
Layer 3 Features |
IPV4 Static routing/ default routing max 128 entries L2+ network management, ARP protocol max 1024 entries |
|
VLAN |
Port configuration of Access, Trunk, Hybrid VLAN based on the protocol, 4K VLAN based on port, IEEE802.1q |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2, Max 1024 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Flow-based Packet Filtering 8*Output queues of each port, 802.1p/ DSCP priority mapping |
|
ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum User hierarchical management and password protection SSH 2.0, SSL, Port isolation, IP-MAC-VLAN-Port binding Mac black holes, IP source protection , ARP message speed limit ARP inspection, Anti-DoS attack, AAA & RADIUS, MAC learning limit |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
ONV-NMS platform cluster management (LLDP+SNMP) Download & Management on FTP, TFTP, Xmodem, SFTP One-key recovery, Cable Diagnose, LLDP, SNMP V1/V2/V3 NTP, System work log, Ping Test, CPU instant utilization status view Web Management (HTTPS), Console/ AUX Modem/ Telnet/ SSH2.0 CLI |
|
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
|
Model |
ONV-IPS5108PFM |
|
Interface Characteristics |
|
|
Fixed Port |
8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 groups of V+, V- redundant DC power port (5P phoenix terminal) |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
SFP Slot Port |
Gigabit optical fiber interface, default no included optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management Type |
Simple web network management, cloud platform management |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full wire-speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G8 (Yellow) PoE: PoE G1-G8 (Green), Fiber port: L/A G9-G10 (Green) |
|
Reset Switch |
Press and hold for 6 seconds and release to restore the factory default settings, short press 2 times (1 second interval) to switch to the unmanaged state |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
PoE Management |
PoE port output on /off, View real-time power status of PoE port |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<8W, Full load af<120W, at-240W |
|
Power Input Port |
DC44-56V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.65kg / <0.8kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
Port status display, Port traffic statistics Port duplex/ negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
|
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
|
Port Aggregation |
Static aggregation |
|
Loop Protection |
Loop protection function |
|
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
|
Security |
Broadcast storm control, Port isolation, Port speed limit |
|
DHCP |
DHCP Snooping |
|
Management |
Mobile APP operation and maintenance management NMS platform management (Local platform/ Cloud platform) One-key recovery, Cable Diagnose, Web Management (HTTPS) |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables |
|
Model |
ONV-IPS5064PFM |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 4*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 groups of V+, V- redundant DC power port (5P phoenix terminal) |
|
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
SFP Slot Port |
Gigabit optical fiber interface, default no included optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management Type |
Simple web network management, cloud platform management |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full wire-speed) |
|
Switching Capacity |
12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G4 (Yellow) PoE: PoE G1-G4 (Green), Fiber port: L/A G5-G6 (Green) |
|
Reset Switch |
Press and hold for 6 seconds and release to restore the factory default settings, short press 2 times (1 second interval) to switch to the unmanaged state |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-4 |
|
PoE Management |
PoE port output on /off, View real-time power status of PoE port |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<6W, Full load af<60W, at<120W |
|
Power Input Port |
DC44-56V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.25kg / <0.35kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
Port status display, Port traffic statistics Port duplex/ negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
|
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
|
Port Aggregation |
Static aggregation |
|
Loop Protection |
Loop protection function |
|
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
|
Security |
Broadcast storm control, Port isolation, Port speed limit |
|
DHCP |
DHCP Snooping |
|
Management |
Mobile APP operation and maintenance management ONV-NMS platform management (Local platform/ Cloud platform) One-key recovery, Cable Diagnose, Web Management (HTTPS) |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables |
|
Model |
ONV-IPS3128PF |
|
Interface Characteristics |
|
|
Fixed Port |
2*1000Base-X uplink SFP fiber ports (Data) 2*10/100/1000Base-T uplink RJ45 ports (Data) 8*10/100/1000Base-T PoE ports (Data/Power) 2 sets of V+, V- redundant DC power port (5P Phoenix terminal) |
|
Ethernet Port |
Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
24Gbps |
|
Forwarding Rate@64byte |
17.86Mpps |
|
MAC |
8K |
|
Buffer Memory |
4Mb |
|
Jumbo Frames |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G10 (Yellow) PoE: PoE G1-G8 (Green), Fiber Port: L/A G11-G12 (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<8W, Full load af<120W, at<240W |
|
Working Voltage |
DC44-56V, 5P industrial phoenix terminal, anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.8kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|

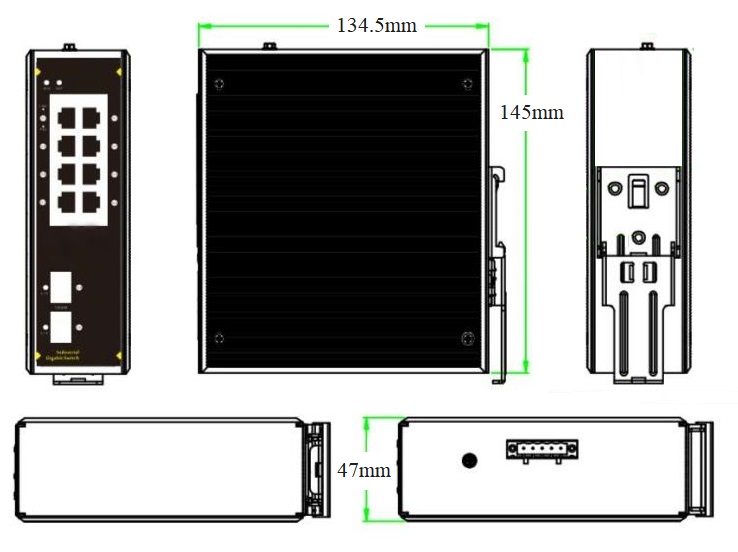

Model |
ONV-IPS3108PF |
|
Interface Characteristics |
|
|
Fixed Port |
2*1000Base-X uplink SFP fiber ports (Data) 8*10/100/1000Base-T PoE ports (Data/Power) 2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit optical fiber port, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
4Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G8 (Yellow) PoE: PoE G1-G8 (Green), Fiber Port: L/A G9-G10 (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<10W, Full load af<120W, at<240W |
|
Working Voltage |
DC44-56V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.75kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|

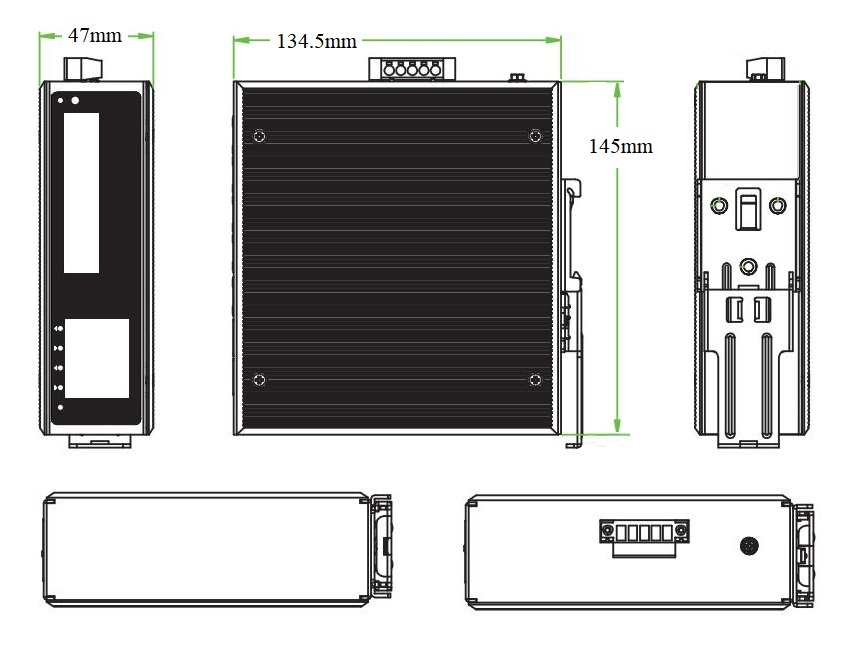

Model |
ONV-IPS3108P |
|
Interface Characteristics |
|
|
Fixed Port |
8*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2 set of V+, V- redundant DC power interface (5P Phoenix terminal) |
|
Ethernet Port |
Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), PoE: PoE G1-G8 (Green) Network: Link G1-G10 (Yellow) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<8W, Full load af<120W, at<240W |
|
Working Voltage |
DC44-56V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.8kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Model |
ONV-IPS3064PFG |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 1*1000Base-X uplink SFP fiber port (Data) 1*10/100/1000Base-T uplink RJ45 port (Data) 4*10/100/1000Base-T PoE ports (Data/Power) 2 sets of V+, V- redundant DC power port (3P Phoenix terminal) |
|
Ethernet Port |
Port 1-5 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Fiber Port |
Gigabit optical fiber interface, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
12Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G5 (Green) PoE: PoE G1-G4 (Green), Fiber port: L/A G6 (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-4 |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<4W, Full load af <60W, at<120W |
|
Working Voltage |
DC44-56V, 3P industrial phoenix terminal, anti-reverse protection. |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Model |
ONV-IPS3064PF |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 2*1000Base-X uplink SFP fiber ports (Data) 4*10/100/1000Base-T PoE ports (Data/Power) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal) |
|
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Fiber Port |
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: LinkG1-G4 (Green) POE: PoEG1-G4 (Green), Fiber port: G5/G6 (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 4 |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<5W, Full load af<60W, at<120W |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Working Voltage |
DC44-56V, 3P industrial phoenix terminal, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3 kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
产品概述
ONV-IPS3064P 系列是ONV自主研发的千兆工业PoE交换机，具备6个千兆以太网自适应电口，其中G1-G4口支持IEEE 802.3af/at标准PoE供电，单端口PoE功率达30W。作为PoE供电设备，能自动检测识别符合标准的受电设备并通过网线为其供电。可通过网线为无线AP、网络摄像头、工业传感器等POE终端设备供电，满足对高密度PoE供电有需求的网络环境，适合智能交通、轨道交通、电力行业、矿业开采、石油、海运、冶金及绿色能源建设等工业场景组建经济高效、稳定、可靠的通信网络。
非网管机型，即插即用，无需配置，使用简单方便；
产品特点
n 千兆光电，快速以太网
◇ 千兆以太网口组合，方便用户灵活组网，满足各种场景组网需求；
◇ 所有端口支持无阻塞线速转发，传输更流畅。
◇ 支持IEEE 802.3x全双工流控和Backpressure半双工流控。
n 智能PoE供电功能
◇ 4个10/100/1000Base-TX RJ45端口支持PoE供电，满足工业领域各种场景PoE供电的需求。
◇ 符合IEEE 802.3af/at PoE供电标准，自动识别PoE设备进行供电，不损坏非PoE设备，单端口最大PoE输出功率为30W。
◇ PoE端口支持优先级机制，当剩余功率不足时，优先保障高优先级端口的供电，避免设备超负荷工作。
n 设备稳定可靠
◇ 主机低功耗、无风扇静音设计，铝合金材质金属外壳，散热优良，保证产品稳定运行。
◇ 设备完全符合3C、CE、FCC、RoHS安规要求，使用安全可靠。
◇ 用户可通过电源指示灯(PWR)、端口状态指示灯（Link）、PoE工作指示灯轻松了解设备工作状态。
产品尺寸规格
包装清单
|
包装清单 |
物品名称 |
数量 |
单位 |
|
6口千兆工业POE光纤交换机 |
1 |
台 |
|
|
快速使用指南 |
1 |
份 |
|
|
保修卡与合格证 |
1 |
份 |
订购信息
|
设备名称 |
设备信息 |
建议电源功率 |
|
ONV-IPS3064P |
非网管型工业 PoE 光纤交换机，配有6*10/100/1000M RJ45 端口。端口 1-4 支持 IEEE 802.3 af/a PoE 标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
60W/120W |
|
说明：本产品默认不配套电源，需单独购买。 |
||
选配信息
电源选型表
|
名称 |
型号 |
描述 |
单位 |
|
65W电源适配器 |
GWS-AP65-52 |
桌面型 65W单组输出电源适配器； 额定输入电压：AC 100V~240V 50-60H，1.1A 额定输出电压：DC 52V 1.25A 工作温度：-20℃—+65℃ |
只 |
|
110W电源适配器 |
GWS-AP110-52 |
桌面型 110W单组输出电源适配器； 额定输入电压：AC100V~240V 50-60Hz, 2.0A 额定输出电压：DC 52V 2A 工作温度：-20℃—+65℃ |
只 |
|
工业60W导轨电源 |
GWS-DP60-48 |
导轨型 60W单组输出工业电源； 额定输入电压：AC 100V~240V 50-60H，1A 额定输出电压：DC 48V 1.25A 工作温度：-40℃—+70℃ |
只 |
|
工业60W导轨电源 |
GWS-DP120-48 |
导轨型 60W单组输出工业电源； 额定输入电压：AC 100V~240V 50-60H，1.5A 额定输出电压：DC 48V 2.5A 工作温度：-40℃—+70℃ |
只 |
|
型号 |
ONV-IPS3064P |
|
端口特征 |
|
|
固定端口 |
1*DC电源插座 2*10/100/1000Base-TX RJ45端口（数据） 4*10/100/1000Base-TX PoE端口（数据/电源） 2组V+、V-冗余直流电源接口（3脚凤凰工业端子） |
|
网口特性 |
G1-G6电口支持10/100/1000Base-TX自动侦测，全/半双工MDI/MDI-X自适应 |
|
双绞线传输 |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5e or later UTP(≤100 meter) |
|
交换芯片参数 |
|
|
网络协议 |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3u 100Base-FX； IEEE802.3x |
|
转发模式 |
存储转发（全线速） |
|
背板带宽 |
16Gbps(无阻塞） |
|
包转发率@64byte |
8.93Mpps |
|
MAC地址表 |
8K |
|
包转发缓存 |
2M |
|
巨型帧 |
9.2KB |
|
LED指示灯 |
Power: PWR (绿色), Network: Link G1-G4 (黄色), PoE: PoE G1-G4 (绿色) |
|
PoE与电源特征 |
|
|
POE端口 |
G1-G4口支持IEEE802.3af/at标准POE供电 |
|
供电引脚 |
默认1/2(+)，3/6(-)4芯供电 |
|
最高单口PoE功率 |
30W，符合IEEE802.3af/at国际标准 |
|
整机功耗 |
待机功耗：＜3W；满载功耗：af＜60W，at＜120W |
|
工作电压 |
直流供电，DC44-56V超宽供电电压，工规3P凤凰端子连接，支持防反接保护 |
|
配套电源 |
无，可选购工业电源48V/60W或48V/120W，见配件信息表选购使用 |
|
物理规格参数 |
|
|
工作温度/湿度 |
-40～+75°C；5%～90% RH无凝结 |
|
存储温度/湿度 |
-40～+85°C；5%～95% RH无凝结 |
|
外观尺寸（L*W*H） |
98*88*30mm |
|
净重/毛重 |
＜0.2kg / ＜0.3kg |
|
安装方式 |
桌面式、35mm DIN卡轨式安装 |
|
产品认证与质保 |
|
|
防雷/防护等级 |
防护等级IP30 防雷保护6KV 8/20us IEC61000-4-3（RS）：10V/m（80~1000MHz） FCC 第 15 部分/CISPR22 (EN55022)：B 级 IEC61000-6-2（通用工业标准） IEC61000-4-9（脉冲磁场）：1000A/m IEC61000-4-10（阻尼振荡）：30A/m，1MHz IEC61000-4-12/18（冲击波）：CM 2.5kV，DM 1kV IEC61000-4-4（EFT）：电源电缆：±4kV，数据电缆：±2kV IEC61000-4-16（共模传输）：30V、300V、1 秒 IEC61000-4-2（ESD）：±8kV接触放电，±15kV空气放电 IEC61000-4-6（无线电频率传输）：10V（150kHz~80MHz） IEC61000-4-8（工频磁场）：100A/m、1000A/m、1s-3s IEC61000-4-5（浪涌）：电源线：CM±4kV/DM±2kV，数据线：±4kV |
|
机械特性 |
IEC60068-2-6（防震） IEC60068-2-32（自由落体） IEC60068-2-27（防震） |
|
安规认证 |
3C；CE mark, commercial；CE/LVD EN62368-1； RoHS； |
|
质保期 |
交换机5年，终身维护 |
产品概述
ONV-IPS3032PF系列是ONV自主研发的千兆工业PoE光纤交换机，包含单纤单模ONV-IPS3032PF-A和ONV-IPS3032PF-B产品，具备2个千兆以太网自适应电口+1个千兆SC光纤接口，其中1-2口支持IEEE 802.3af/at标准PoE供电，单端口PoE功率达30W。作为PoE供电设备，能自动检测识别符合标准的受电设备并通过网线为其供电，可通过网线为无线AP、网络摄像头、工业传感器等POE终端设备供电，满足对高密度PoE供电有需求的网络环境，适合智能交通、轨道交通、电力行业、矿业开采、石油、海运、冶金及绿色能源建设等工业场景组建经济高效、稳定、可靠的通信网络。
非网管机型，即插即用，无需配置，使用简单方便；
产品特点
n 千兆光电，快速以太网
◇ 全系列支持“千兆以太网口+千兆光口”组合，方便用户灵活组网，满足各种场景组网需求；
◇ 所有端口支持无阻塞线速转发，传输更流畅。
◇ 支持IEEE 802.3x全双工流控和Backpressure半双工流控。
n 智能PoE供电功能
◇ 1-2个10/100/1000Base-TX RJ45端口支持PoE供电，满足工业领域各种场景PoE供电的需求。
◇ 符合IEEE 802.3af/at PoE供电标准，自动识别PoE设备进行供电，不损坏非PoE设备，单端口最大PoE输出功率为30W。
◇ PoE端口支持优先级机制，当剩余功率不足时，优先保障高优先级端口的供电，避免设备超负荷工作。
n 设备稳定可靠
◇ 主机低功耗、无风扇静音设计，铝合金材质金属外壳，散热优良，保证产品稳定运行。
◇ 设备完全符合3C、CE、FCC、RoHS安规要求，使用安全可靠。
◇ 用户可通过电源指示灯(PWR)、端口状态指示灯（Link）、PoE工作指示灯轻松了解设备工作状态。
产品尺寸规格
包装清单
|
包装清单 |
物品名称 |
数量 |
单位 |
|
3口千兆工业POE光纤交换机 |
1 |
台 |
|
|
快速使用指南 |
1 |
份 |
|
|
保修卡与合格证 |
1 |
份 |
订购信息
|
设备名称 |
设备信息 |
建议电源功率 |
|
ONV-IPS3032PF |
非网管型工业 PoE 光纤交换机，配有2*10/100/1000M RJ45 端口和 1*1.25G SC 端口（1310nm/20km 单模双光纤模块）。端口 1 支持 IEEE 802.3 af/a PoE 标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
36W/60W |
|
ONV-IPS3032PF-A |
非网管型工业PoE光纤交换机，配有2*10/100/1000M RJ45端口和1*1.25G上行SC端口（1310nm/20km 单模单纤模块）。端口 1 -2支持 IEEE 802.3 af/a PoE标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
36W/60W |
|
ONV-IPS3032PF-B |
非网管型工业 PoE光纤交换机，配有2*10/100/1000M RJ45端口和 1*1.25G上行SC 端口（1550nm/20km 单模单纤模块）。端口1-2支持 IEEE 802.3 af/a PoE 标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
36W/60W |
|
说明：本产品默认不配套电源，需单独购买。 |
||
选配信息
电源选型表
|
名称 |
型号 |
描述 |
单位 |
|
36W电源适配器 |
GWS-AP36-52 |
桌面型 36W单组输出电源适配器； 额定输入电压：AC 100V~240V 50-60H，0.56A 额定输出电压：DC 52V 0.7A 工作温度：-20℃—+65℃ |
只 |
|
65W电源适配器 |
GWS-AP65-52 |
桌面型 65W单组输出电源适配器； 额定输入电压：AC 100V~240V 50-60H，1.1A 额定输出电压：DC 52V 1.25A 工作温度：-20℃—+65℃ |
只 |
|
工业36W导轨电源 |
GWS-DP36-48 |
导轨型 36W单组输出工业电源； 额定输入电压：AC 100V~240V 50-60H，0.56A 额定输出电压：DC 48V 0.75A 工作温度：-40℃—+70℃ |
只 |
|
工业60W导轨电源 |
GWS-DP60-48 |
导轨型 60W单组输出工业电源； 额定输入电压：AC 100V~240V 50-60H，1A 额定输出电压：DC 48V 1.25A 工作温度：-40℃—+70℃ |
只 |
|
型号 |
ONV-IPS3032PF ONV-IPS3032PF-A/B |
|
端口特征 |
|
|
固定端口 |
2个10/100/1000Base-TX POE口（Data/Power） 1个1.25G上联SC光口 (Data) DC44-56V, 3P 工业凤凰端子，支持防反接保护。 |
|
网口特性 |
1-2口支持10/100/1000Base-TX自动侦测，全/半双工MDI/MDI-X自适应 |
|
双绞线传输 |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5e or later UTP(≤100 meter) |
|
光口特性 |
默认配套光模块为单模双纤20km,SC接口 |
|
光缆 |
多模 ——工作波长：850nm ，传输距离：0～500M；1310nm,传输距离：0～2KM； 单模 ——工作波长：1310nm，传输距离：0～40KM； 工作波长： 1550nm，传输距离：0～120KM 。 |
|
交换芯片参数 |
|
|
网络协议 |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3u 100Base-FX； IEEE802.3x |
|
转发模式 |
存储转发（全线速） |
|
背板带宽 |
12 Gbps(无阻塞） |
|
包转发率@64byte |
8.93 Mpps |
|
MAC地址表 |
2K |
|
包转发缓存 |
2M |
|
巨型帧 |
9216 bytes |
|
LED指示灯 |
功率：PWR（绿色），网络：Link 1-2（黄色），PoE：PoE G1-G2（绿色） 光纤端口：G3（绿色） |
|
PoE与电源特征 |
|
|
POE端口 |
G1-2口支持IEEE802.3af/at标准POE供电 |
|
供电引脚 |
默认1/2(+)，3/6(-)4芯供电 |
|
最高单口PoE功率 |
30W，符合IEEE802.3af/at国际标准 |
|
整机功耗 |
待机功耗：＜3W；满载功耗：＜60W |
|
工作电压 |
直流供电，DC44-56V超宽供电电压，工规3P凤凰端子连接，支持防反接保护 |
|
配套电源 |
无，可选购工业电源48V/36W或48V/60W，见配件信息表选购使用 |
|
物理规格参数 |
|
|
工作温度/湿度 |
-40～+75°C；5%～90% RH无凝结 |
|
存储温度/湿度 |
-40～+85°C；5%～95% RH无凝结 |
|
外观尺寸（L*W*H） |
98*88*30mm |
|
净重/毛重 |
＜0.2kg / ＜0.3kg |
|
安装方式 |
桌面式、35mm DIN卡轨式安装 |
|
产品认证与质保 |
|
|
防雷/防护等级 |
防护等级IP30 防雷保护6KV 8/20us IEC61000-4-3（RS）：10V/m（80~1000MHz） FCC 第 15 部分/CISPR22 (EN55022)：B 级 IEC61000-6-2（通用工业标准） IEC61000-4-9（脉冲磁场）：1000A/m IEC61000-4-10（阻尼振荡）：30A/m，1MHz IEC61000-4-12/18（冲击波）：CM 2.5kV，DM 1kV IEC61000-4-4（EFT）：电源电缆：±4kV，数据电缆：±2kV IEC61000-4-16（共模传输）：30V、300V、1 秒 IEC61000-4-2（ESD）：±8kV接触放电，±15kV空气放电 IEC61000-4-6（无线电频率传输）：10V（150kHz~80MHz） IEC61000-4-8（工频磁场）：100A/m、1000A/m、1s-3s IEC61000-4-5（浪涌）：电源线：CM±4kV/DM±2kV，数据线：±4kV |
|
机械特性 |
IEC60068-2-6（防震） IEC60068-2-32（自由落体） IEC60068-2-27（防震） |
|
安规认证 |
3C；CE mark, commercial；CE/LVD EN62368-1； RoHS； |
|
质保期 |
交换机5年，终身维护 |
产品概述
ONV-IPS3021PF系列，包含单纤单模ONV-IPS3021PF-AONV-IPS3021PF-B，是ONV自主研发的千兆工业PoE光纤交换机，具备1个千兆以太网自适应电口+1个千兆SC光纤接口，其中1网口支持IEEE 802.3af/at标准PoE供电，单端口PoE功率达30W。作为PoE供电设备，能自动检测识别符合标准的受电设备并通过网线为其供电。可通过网线为无线AP、网络摄像头、工业传感器等POE终端设备供电，满足对高密度PoE供电有需求的网络环境，适合智能交通、轨道交通、电力行业、矿业开采、石油、海运、冶金及绿色能源建设等工业场景组建经济高效、稳定、可靠的通信网络。
非网管机型，即插即用，无需配置，使用简单方便；
产品特点
n 千兆光电，快速以太网
◇ 全系列支持“千兆以太网口+千兆光口”组合，方便用户灵活组网，满足各种场景组网需求；
◇ 所有端口支持无阻塞线速转发，传输更流畅。
◇ 支持IEEE 802.3x全双工流控和Backpressure半双工流控。
n 智能PoE供电功能
◇ 1个10/100/1000Base-TX RJ45端口支持PoE供电，满足工业领域各种场景PoE供电的需求。
◇ 符合IEEE 802.3af/at PoE供电标准，自动识别PoE设备进行供电，不损坏非PoE设备，单端口最大PoE输出功率为30W。
◇ PoE端口支持优先级机制，当剩余功率不足时，优先保障高优先级端口的供电，避免设备超负荷工作。
n 设备稳定可靠
◇ 主机低功耗、无风扇静音设计，铝合金材质金属外壳，散热优良，保证产品稳定运行。
◇ 设备完全符合3C、CE、FCC、RoHS安规要求，使用安全可靠。
◇ 用户可通过电源指示灯(PWR)、端口状态指示灯（Link）、PoE工作指示灯轻松了解设备工作状态。
产品尺寸规格
包装清单
|
包装清单 |
物品名称 |
数量 |
单位 |
|
2口千兆工业POE光纤交换机 |
1 |
台 |
|
|
快速使用指南 |
1 |
份 |
|
|
保修卡与合格证 |
1 |
份 |
订购信息
|
设备名称 |
设备信息 |
建议电源功率 |
|
ONV-IPS3021PF |
非网管型工业 PoE 光纤交换机，配有 1*10/100/1000M RJ45 端口和 1*1.25G SC 端口（1310nm/20km 单模双光纤模块）。端口 1 支持 IEEE 802.3 af/a PoE 标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
48V/36W |
|
ONV-IP3021PF-A |
非网管型工业PoE光纤交换机，配有1*10/100/1000M RJ45端口和1*1.25G上行SC端口（1310nm/20km 单模单纤模块）。端口 1 支持 IEEE 802.3 af/a PoE标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
48V/36W |
|
ONV-IP3021PF-B |
非网管型工业 PoE光纤交换机，配有 1*10/100/1000M RJ45端口和 1*1.25G上行SC 端口（1550nm/20km 单模单纤模块）。端口1支持 IEEE 802.3 af/a PoE 标准。支持双路直流冗余电源输入和 DIN 导轨安装。 |
48V/36W |
|
说明：本产品默认不配套电源，需单独购买。 |
||
选配信息
电源选型表
|
名称 |
型号 |
描述 |
单位 |
|
36W电源适配器 |
GWS-AP36-52 |
桌面型 36W单组输出电源适配器； 额定输入电压：AC 100V~240V 50-60H，0.56A 额定输出电压：DC 52V 0.7A 工作温度：-20℃—+65℃ |
只 |
|
工业36W导轨电源 |
GWS-DP36-48 |
导轨型 36W单组输出工业电源； 额定输入电压：AC 100V~240V 50-60H，0.56A 额定输出电压：DC 48V 0.75A 工作温度：-40℃—+70℃ |
只 |
|
型号 |
ONV-IPS3021PF ONV-IPS3021PF-A/B |
|
端口特征 |
|
|
固定端口 |
1个10/100/1000Base-TX POE口（Data/Power） 1个1.25G上联SC光口 (Data) DC44-56V, 3P工业凤凰端子，支持防反接保护。 |
|
网口特性 |
1口支持10/100/1000Base-TX自动侦测，全/半双工MDI/MDI-X自适应 |
|
双绞线传输 |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5e or later UTP(≤100 meter) |
|
光口特性 |
默认配套光模块为单模双纤20km,SC接口 |
|
光缆 |
多模 ——工作波长：850nm ，传输距离：0～500M；1310nm,传输距离：0～2KM； 单模 ——工作波长：1310nm，传输距离：0～40KM； 工作波长： 1550nm，传输距离：0～120KM 。 |
|
交换芯片参数 |
|
|
网络协议 |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3u 100Base-FX； IEEE802.3x |
|
转发模式 |
存储转发（全线速） |
|
背板带宽 |
12 Gbps(无阻塞） |
|
包转发率@64byte |
8.93 Mpps |
|
MAC地址表 |
2K |
|
包转发缓存 |
2M |
|
巨型帧 |
9216 bytes |
|
LED指示灯 |
功率：PWR（绿色），网络：Link（黄色），PoE：POE（绿色） 光纤端口：2（绿色） |
|
PoE与电源特征 |
|
|
POE端口 |
第1口支持IEEE802.3af/at标准POE供电 |
|
供电引脚 |
默认1/2(+)，3/6(-)4芯供电 |
|
最高单口PoE功率 |
30W，符合IEEE802.3af/at国际标准 |
|
整机功耗 |
待机功耗：＜3W；满载功耗：＜60W |
|
工作电压 |
直流供电，DC44-56V超宽供电电压，工规3P凤凰端子连接，支持防反接保护 |
|
配套电源 |
无，可选购工业电源48V/36W或48V/60W，见配件信息表选购使用 |
|
物理规格参数 |
|
|
工作温度/湿度 |
-40～+75°C；5%～90% RH无凝结 |
|
存储温度/湿度 |
-40～+85°C；5%～95% RH无凝结 |
|
外观尺寸（L*W*H） |
98*88*30mm |
|
净重/毛重 |
＜0.2kg / ＜0.3kg |
|
安装方式 |
桌面式、35mm DIN卡轨式安装 |
|
产品认证与质保 |
|
|
防雷/防护等级 |
防护等级IP30 防雷保护6KV 8/20us IEC61000-4-3（RS）：10V/m（80~1000MHz） FCC 第 15 部分/CISPR22 (EN55022)：B 级 IEC61000-6-2（通用工业标准） IEC61000-4-9（脉冲磁场）：1000A/m IEC61000-4-10（阻尼振荡）：30A/m，1MHz IEC61000-4-12/18（冲击波）：CM 2.5kV，DM 1kV IEC61000-4-4（EFT）：电源电缆：±4kV，数据电缆：±2kV IEC61000-4-16（共模传输）：30V、300V、1 秒 IEC61000-4-2（ESD）：±8kV接触放电，±15kV空气放电 IEC61000-4-6（无线电频率传输）：10V（150kHz~80MHz） IEC61000-4-8（工频磁场）：100A/m、1000A/m、1s-3s IEC61000-4-5（浪涌）：电源线：CM±4kV/DM±2kV，数据线：±4kV |
|
机械特性 |
IEC60068-2-6（防震） IEC60068-2-32（自由落体） IEC60068-2-27（防震） |
|
安规认证 |
3C；CE mark, commercial；CE/LVD EN62368-1； RoHS； |
|
质保期 |
交换机5年，终身维护 |
在线客服
