产品特点

n 全千兆端口

◇ 采用10/100/1000M自适应RJ45端口，方便用户灵活组网，满足各种场景组网需求；

◇ 所有端口支持无阻塞线速转发，传输更流畅。

◇ 支持IEEE 802.3x全双工流控和Backpressure半双工流控。



n 智能PoE供电功能

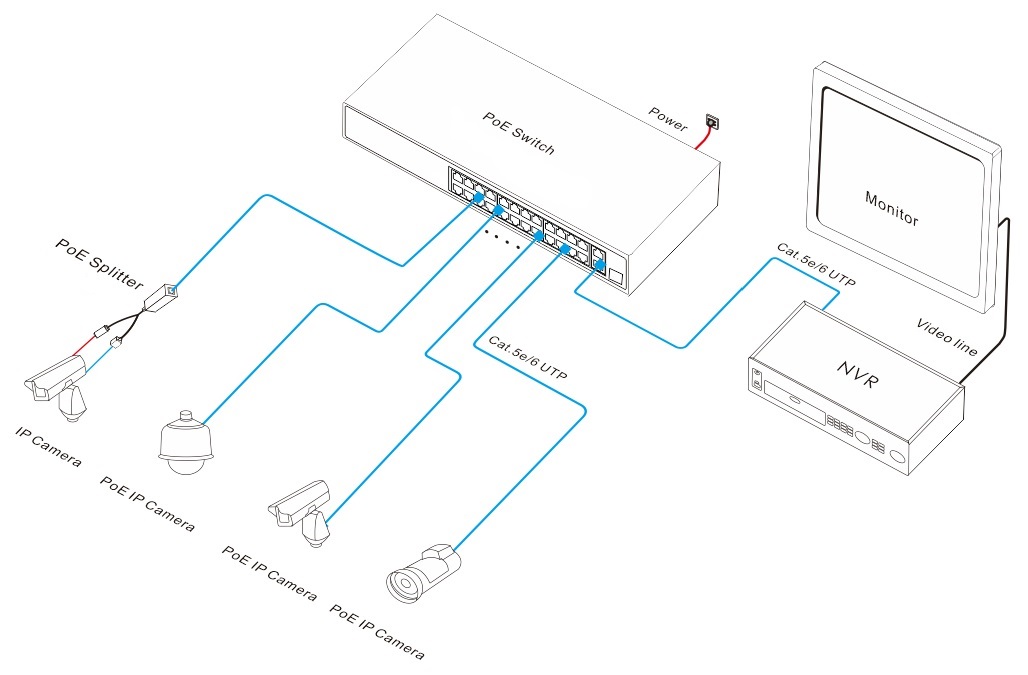

◇ 16个10/100/1000Base-T RJ45端口支持PoE供电，满足安防监控、电话会议系统、无线覆盖等场景PoE供电的需求。

◇ 符合IEEE 802.3af/at  PoE供电标准，自动识别PoE设备进行供电，不损坏非PoE设备单端口最大PoE输出功率为30W。

◇ PoE端口支持优先级机制，当剩余功率不足时，优先保障高优先级端口的供电，避免设备超负荷工作。



n 设备稳定可靠,操作简单

◇ 主机低功耗设计，金属外壳，超强散热，保证产品稳定运行。

◇ 采用ONV自主研发的电源，高冗余设计，提供长久稳定PoE电力输出。

◇ 设备满足国家CCC标准，完全符合CE、FCC、RoHS安规要求，使用安全可靠。

◇ 用户可通过电源指示灯(PWR)、端口状态指示灯（Link）、PoE工作指示灯轻松了解设备工作状态。

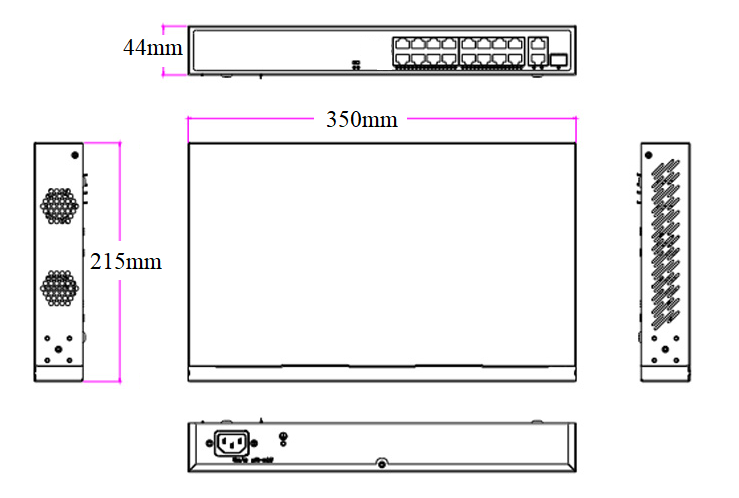

产品尺寸规格

包装清单

包装清单	物品名称	数量	单位
	18口全千兆POE供电交换机	1	台
	AC电源线	1	根
	五金安装套件	1	对
	快速使用指南	1	份
	保修卡与合格证	1	份



订购信息
