Model

ONV-IPS3032F

Interface Characteristics

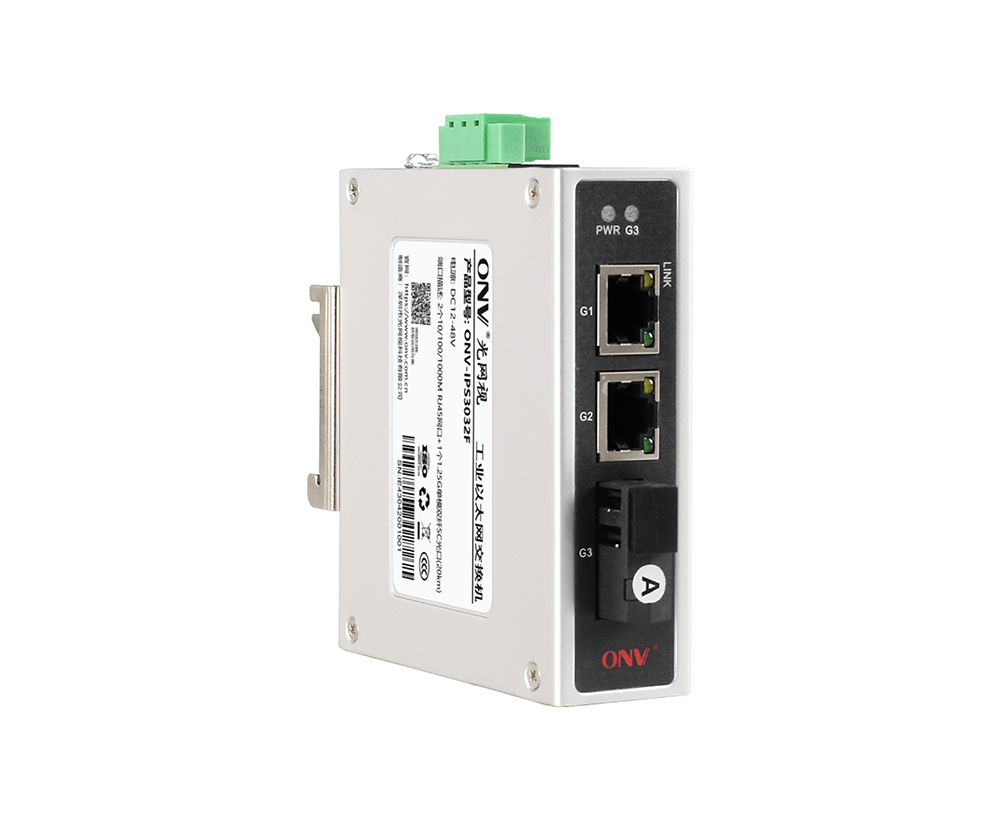

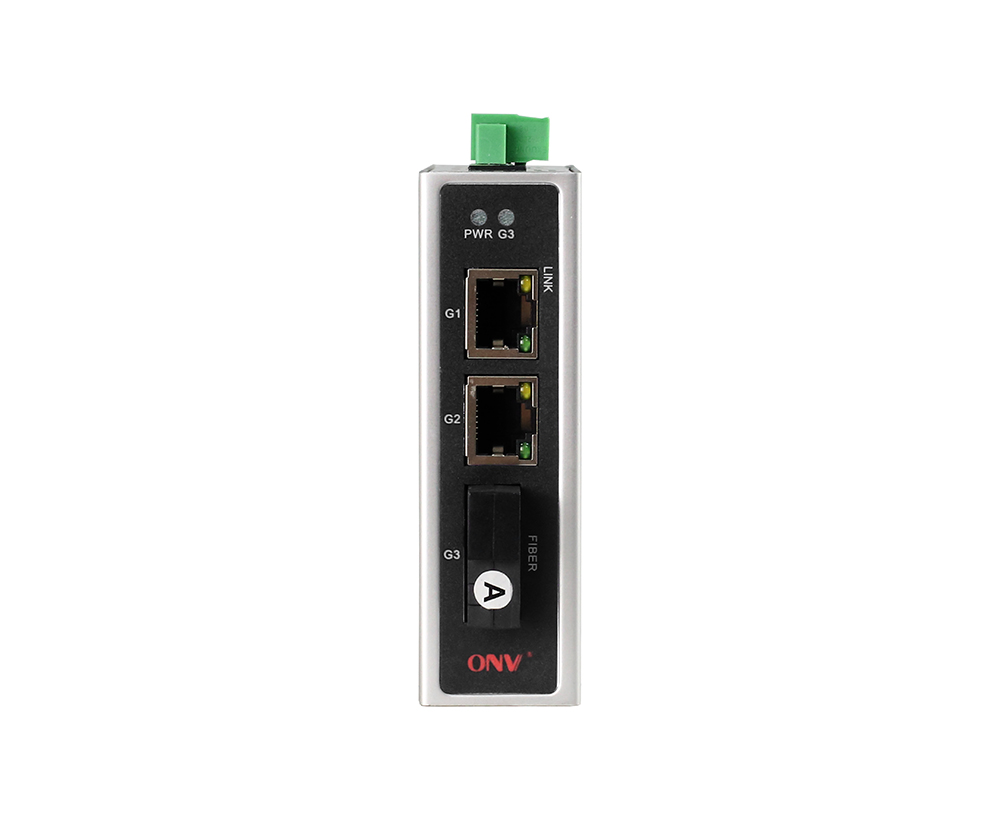

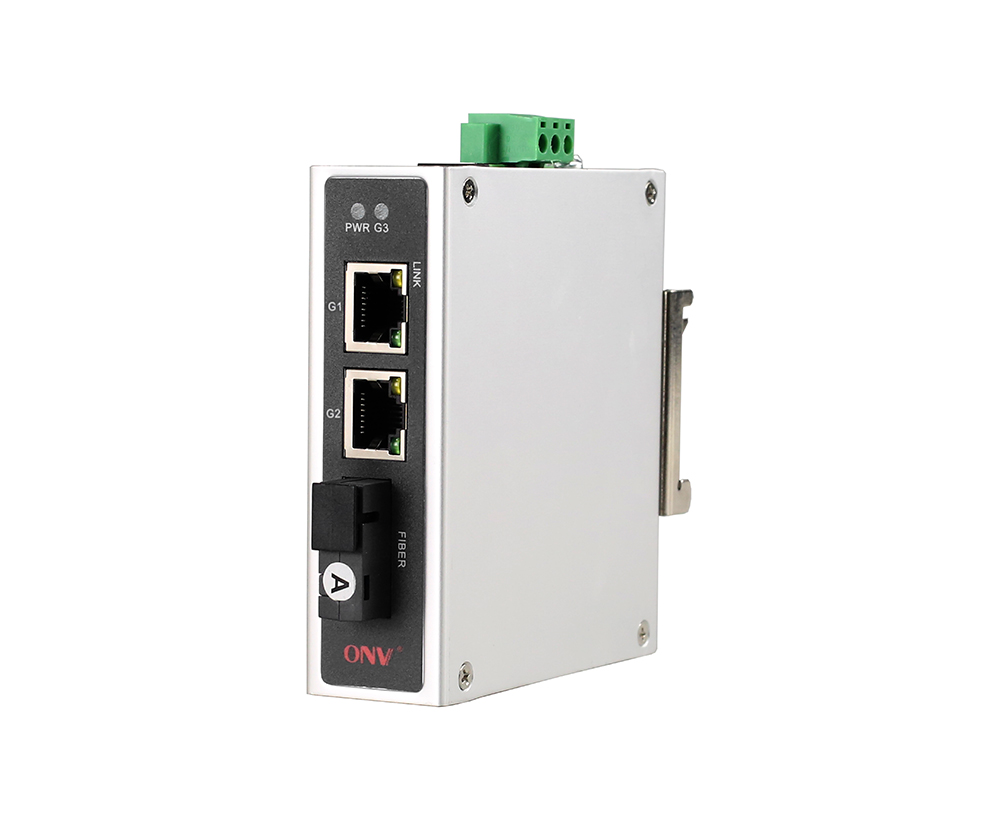

Fixed Port

1*DC5521 power socket

1*1000Base-X uplink SC port(Data)

2*10/100/1000Base-T RJ45 ports (Data)

2 set of V+, V- redundant DC power interface (3P Phoenix terminal)

Ethernet Port

Port 1 to 2 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meters)

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e or later UTP (≤100 meters)

Fiber Port

Gigabit single-mode dual fiber SC optical module (optional single-mode single fiber optical module)

Optical Cable/ Distance

Multi-mode: 850nm/ 0-550m

Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

10Gbps

Forwarding

Rate@64byte

4.46Mpps

MAC

2K

Buffer Memory

2M

Jumbo Frame

9.2K

LED Indicator

Power: PWR (Green), Network: Link (Yellow)

Power Supply

Power Consumption

Standby<4W, Full load<6W

Working Voltage

DC12-48V, 3P industrial Phoenix terminal, support anti-reverse protection.

Power Supply

No, optional 24W/24V industrial power supply

Physical Parameter

Operation TEMP/ Humidity

-40~+75°C, 5%~90% RH Non condensing

Storage TEMP/ Humidity

-40~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

98*88*30mm

Net /Gross Weight

<0.2kg / <0.3kg

Installation

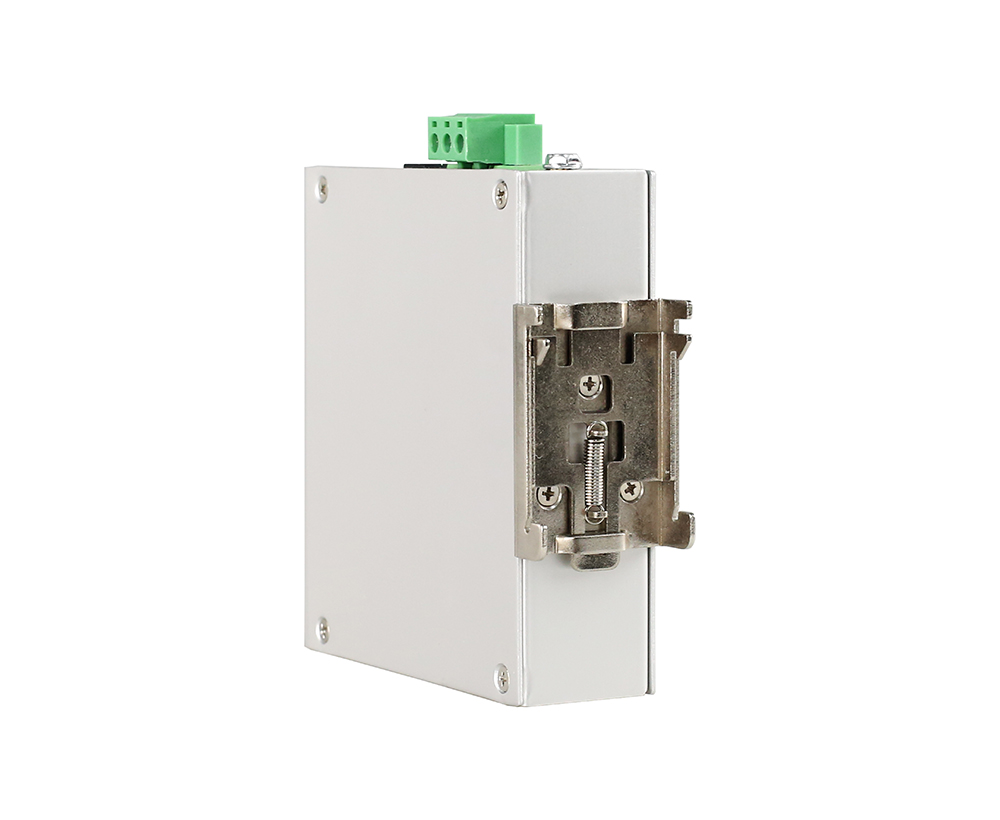

Desktop, 35mm DIN rail

Certification & Warranty

Lightning Protection

Protection level: IP30, Lightning protection: 6KV 8/20us

IEC61000-4-3 (RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22 (EN55022): Class B

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnet field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz

IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV

IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s

IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV

Mechanical Properties

IEC60068-2-6 (Anti Vibration)

IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

5 years, lifelong maintenance.
